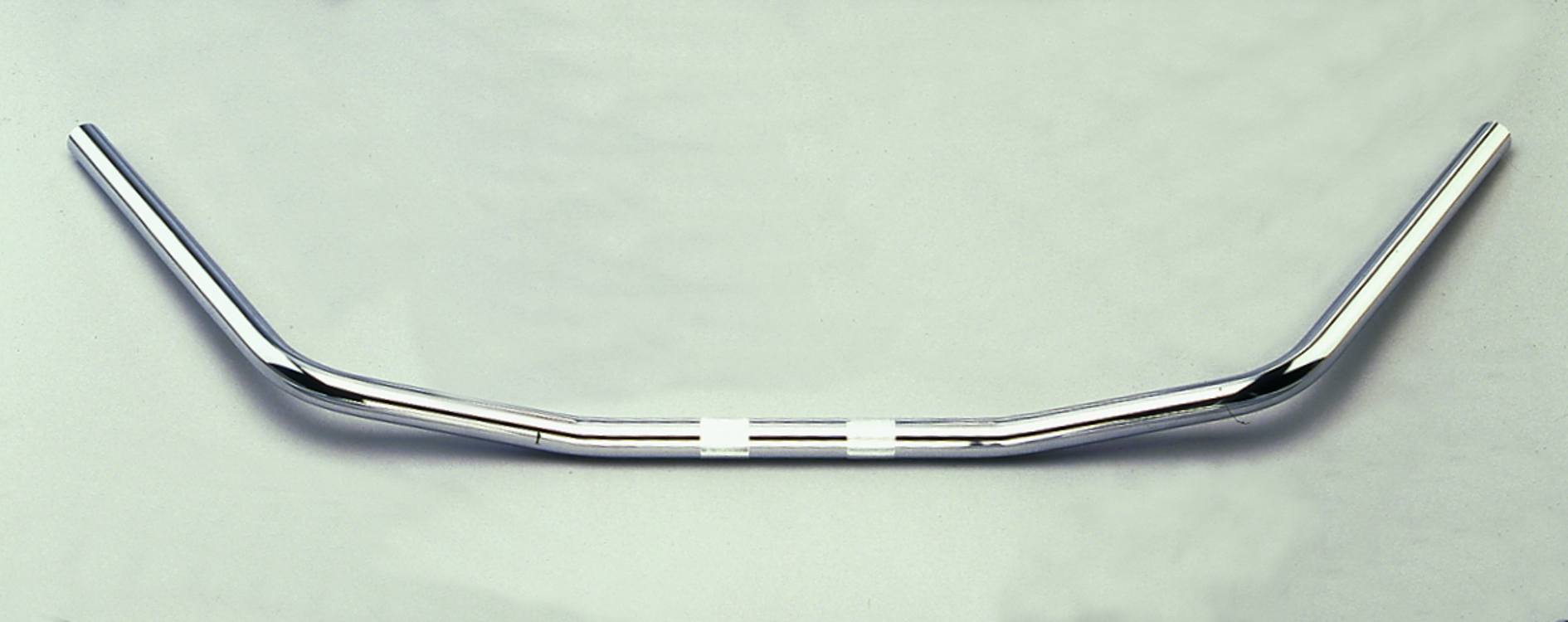

Description
Technical dimensions: Measured with handlebars in vertical position (dimensions in mounting position may vary greatly)
| a | 1010 | Width |
| b | 70 | Height at the end of the outer bend |
| c | 290 | Depth to rear |
| d | 90 | Height at end of grip |
| e | 275 | Measured at intersection of tube outer edges |
Dimensions in mounting position: (Dimensions may vary depending on handlebars and mounting).
| 60 | Height | |
| 270 | Depth to rear (Pullback) |
Other dimensions:
| 280 | Maximum handle length | |
| 251 | Maximum clamp width | |
| 120 / 60 | Width of knurling (outside / inside) |
