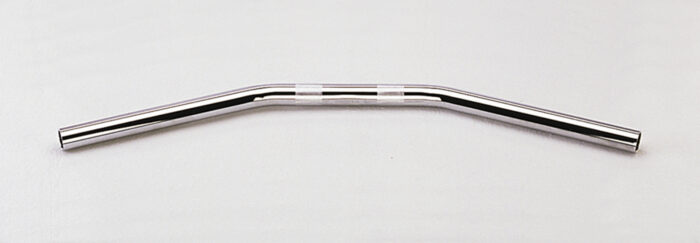

Description
Technical dimensions: Measured with handlebars in vertical position (dimensions in mounting position may vary greatly)
| a | 635 | Width |
| b | Height at the end of the outer bend | |
| c | 135 | Depth to rear |
| d | Height at end of grip | |
| e | 190 | Measured at intersection of tube outer edges |
Dimensions in mounting position: (Dimensions may vary depending on handlebars and mounting).
| Height | ||
| Depth to rear (Pullback) |
Other dimensions:
| 230 | Maximum handle length | |
| 130 | Maximum clamp width | |
| 120 / 60 | Width of knurling (outside / inside) |
